Product Description

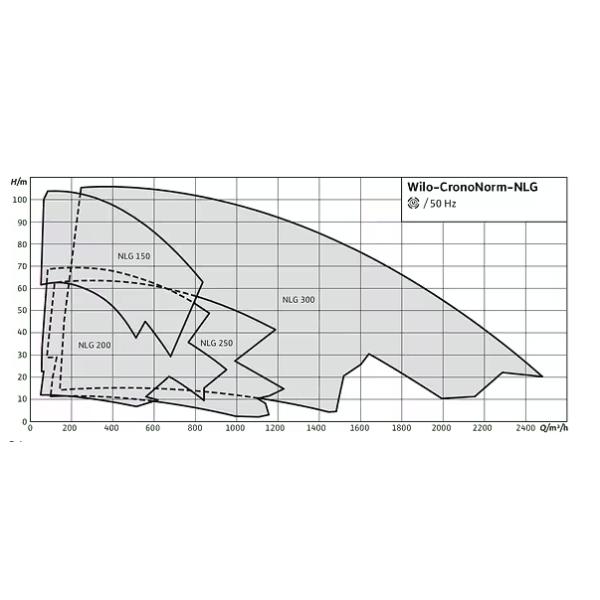

| Wilo CronoNorm NLG is a single-stage, low-pressure centrifugal pump suitable for heating, cooling, and industrial circulation applications. Maximum traffic: 2400m³/h
Maximum head: 105m - Permissible temperature range:-20°C to +120°C
- Mains connection: 3~400 V, 50 Hz
- Nominal diameter :DN 150 to DN 300
- Max. operating pressure: 16 bar
Aplication field :Wilo CronoNorm NLG is suitable for pumping heating water (compliant with VDI 2035), chilled water, and water/ethylene glycol mixtures (non abrasive substances), and is widely used in irrigation, construction services, general industry, power plants, and other fields. It plays an important role in various industrial and civil facilities that require fluid transportation. |  |
Your advantages
- IE3/IE4 motor technology for energy-saving operation
- Optimised efficiency reduces life cycle costs
- Bidirectional, force-flushed mechanical seal
- Exchangeable neck rings
- Permanently lubricated, generously sized ball bearing
- Low NPSH value, optimal cavitation characteristics
|
Design

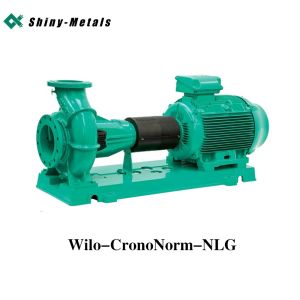

Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate.
Application
- Pumping of heating water (acc. to VDI 2035), chilled water and water/glycol mixtures without abrasive substances in heating, chilled water and cooling systems.
- Applications for irrigation, building services, general industry, power stations, etc.
-
Equipment/function

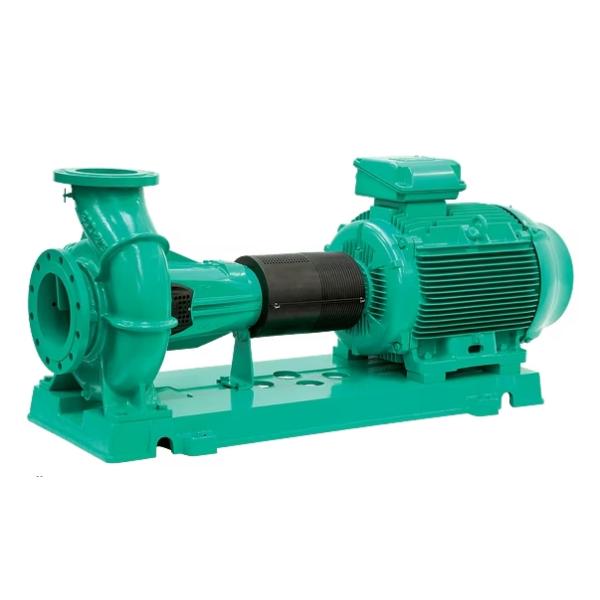

Single-stage low-pressure centrifugal pump in monobloc design with coupling, coupling guard, motor and baseplate
- Mechanical shaft seal or stuffing box
-
Typekey
| Example | NLG 200/315-75/4 |
| NLG | Series designation: Standard pump |
| 200 | Nominal diameter DN of pressure port |
| 315 | Nominal diameter of impeller [mm] |
| 75 | Rated motor power P2 [kW] |
| 4 | number of poles |
Technical data
- Permissible temperature range -20°C to +120°C
- Mains connection 3~400 V, 50 Hz
- Protection class: IP55
- Nominal diameter DN 150 to DN 300
- Max. operating pressure 16 bar
-
Materials
- Pump housing and pressure lid: EN-GJS-500-7
- Bearing bracket: EN-GJL-250
- Impeller: EN-GJL-250(special version: G-CuSn10)
- Shaft: 1.4028
- Stationary wear rings: G-CuSn10
- Mechanical seal: AQ1EGG;(other mechanical seals on request)
-
Construction
- Single-stage horizontal spiral housing pump with bearing bracket and exchangeable stationary wear rings in process design
- Shaft seal using mechanical shaft seals in accordance with EN 12756 or packing stuffing box
- Spiral housing with cast pump bases. Bearing of the pump shaft using greased grooved ball bearing
- Shaft coupling with intermediate sleeve
-
Scope of delivery
- Pump
- Installation and operating instructions
- Pump with free shaft end or
- Pump on baseplate with coupling and coupling guard or
- Completely mounted pump on baseplate with electric motor
-
Options
- Other materials and versions on request
- Other voltages and frequencies available on request.
