Wilo-Multivert MVI Multistage high pressure centrifugal pump

Name: WiloMultivert MVI Multistage high pressure centrifugal pump
Brand: Wilo
Price: 1 USD

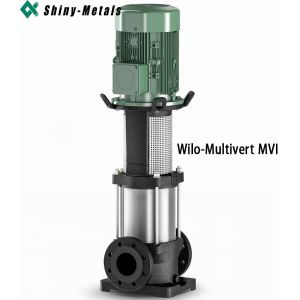

Quality Wilo-Multivert MVI Multistage high pressure centrifugal pump for sale

Brand Name : Wilo

Model Number : Wilo-Helix VF (VdS)

Place of Origin : Germany

MOQ : 1

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 weeks

Packaging Details : Wooden case packing

Flow rate : 70m3/h

Fluid temperature : -15 °C - +120 °C

Maximum working pressure : 16bar

Maximum inlet pressure : 10bar

Class of protection : IP55

Contact Now

Your advantages

Corrosion-resistant impellers and guide vanes and stage housings
Drinking water approval depends on a permit for drinking water from local authorities (see material category)

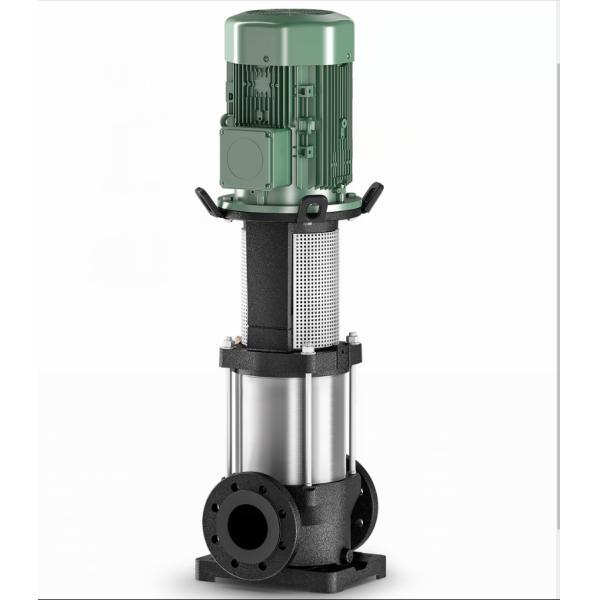

Wilo-Multivert MVI Multistage high pressure centrifugal pump

Design

Non-self-priming multistage pump

Wilo-Multivert MVI Multistage high pressure centrifugal pump

Application

Water distribution and pressure boosting
Fire-fighting systems
Boiler feed
Industrial circulation systems
Process engineering
Cooling water circulation systems
Washing and sprinkling systems

Equipment/function

MVI 70.. and 95..: PN16 and PN25 version with round flange
IE2-IEC standard moto

Typekey

Example:	MVI 7002/1 CN-1/16/E/3-400-50-2
MVI	Vertical high-pressure multistage centrifugal pump
70	Flow rate in m3/h
02	Number of impellers
1	Number of trimmed impellers
3	3= pump housing EN-GJL-250 (cataphoretic coating), hydraulics 1.4301 (AISI 304)
16	Flange type16 = flange PN16 (round or oval)25 = flange PN25 (round or oval)
E	Gasket typeE = EPDMV = FKM (Viton)
3	3~ (three-phase current)
400	Connection voltage in V
50	Frequency in Hz
2	Number of poles

Technical data

Electrical connection:
- 3~400 V (±10 %), 50 Hz
- ≤ 4 kW 230 V/ 400 V; Δ/Y
- > 4 kW 400 V/ 690 V; Δ/Y
Fluid temperature of -15 to +120 °C (with EPDM), (-15 to +90 °C with FKM)
Operating pressure max. 16/25 bar
Max. inlet pressure of 10 bar
Protection class IP 55
Flange connections:
MVI 70../95.. PN 16/PN 25: Round flange (DN 100)

Materials

MVI 70../95..:

Impellers of stainless steel 1.4408
Stage chambers made of 1.4301 stainless steel
Pump housing EN-GJL-250
Shaft 1.4057 stainless steel
Gasket EPDM (EP 851)
Housing cover made of 1.4301 stainless steel
Housing bottom made of 1.4301 stainless steel
Mechanical seal of B-carbon/tungsten carbide, SiC/carbon
Pressure shroud made of 1.4301 stainless steel
Bearing of tungsten carbide

Scope of delivery

MVI high-pressure multistage centrifugal pump
MVI 70../95..: bolts and gaskets if a counter flange is used (PN16 and PN25 with round flanges)
Installation and operating instructions
